Test Types Configuration

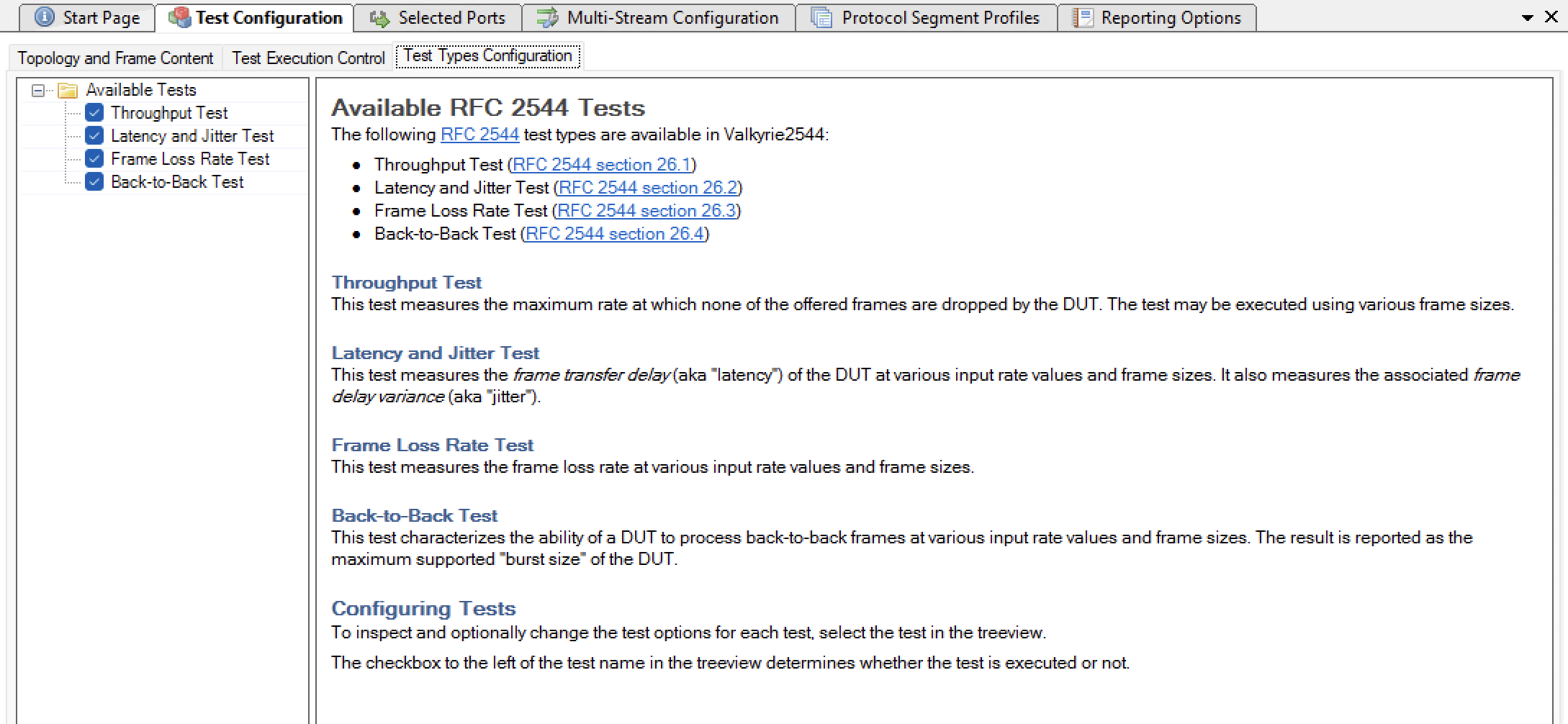

Fig. 21 Test type configuration panel

This subpanel defines which RFC 2544 tests would want to perform and also allow you to configure how you want them executed.

To inspect and optionally change the test properties for each test, select the test in the tree view. The test properties will now be shown in the panel to the right.

The checkbox to the left of the test name in the tree view determines whether the test is executed or not.

• Throughput Test Options
  • Common Options
  • Rate Iteration Options
  • Pass Criteria
  • Test Data
• Latency & Jitter Test Options
  • Common Options
  • Rate Sweep Options
  • Misc. Options
• Frame Loss Rate Test Options
  • Common Options
  • Rate Sweep Options
  • Pass Criteria
  • Convergence
• Back-to-Back Test Options
• Common Options
• Rate Sweep Options
