Burdened Group Join Delay Options#

../../_images/burdened_group_join_delay.png

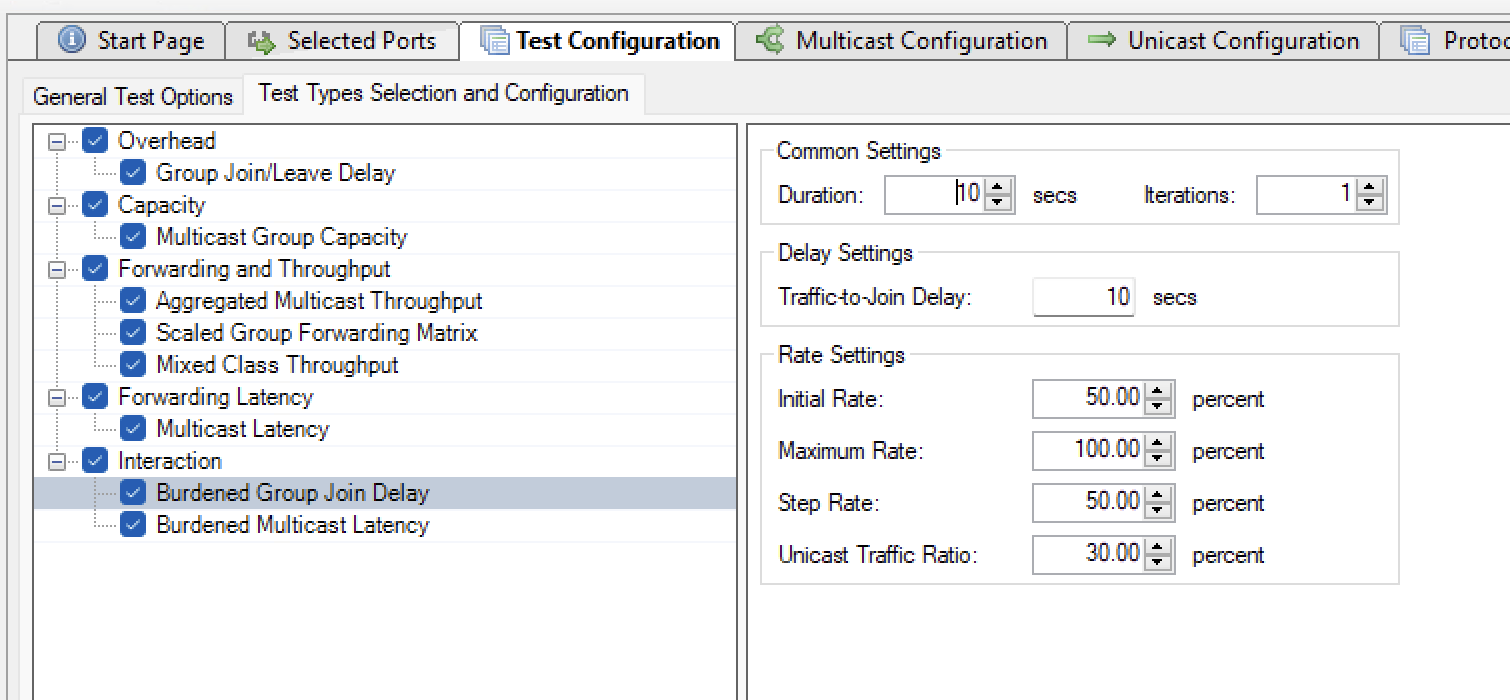

Fig. 12 Burdened Group Join Delay Options#

Common Options#

  • Duration

    The duration in seconds of the time used in each trial for the actual measurement. This does not include the test setup and teardown phases so the total duration of a test will be longer.

  • Iterations

    The number of times a test is repeated using the same set of variable parameters (packet size, rate, etc.)

Delay Settings#

  • Traffic-to-Join Delay

    The number of seconds to wait between starting the multicast traffic on the source port and sending the Join requests on the destination ports.

Rate Settings#

  • Initial Rate

    If present this option denotes the initial rate in percent of the overall rate configured in the Multicast Stream panel.

  • Maximum Rate

    If present this option denotes the maximum rate in percent of the overall rate configured in the Multicast Stream panel.

  • Step Rate

    If present this option is used to increment the rate percentage when iterating from a starting to a maximum rate.

  • Unicast Traffic Ratio

    If present this option denotes the percentage of the overall rate configured in the Multicast Stream panel to be used for unicast traffic.

Note

Note that the unicast rate will be added to the configured multicast rate. So if the multicast rate has been set to e.g. 10% and the UC traffic ratio is set to 50% the total rate for the port will be 10% + (50% of 10%) = 15%.
