Chassis Properties#

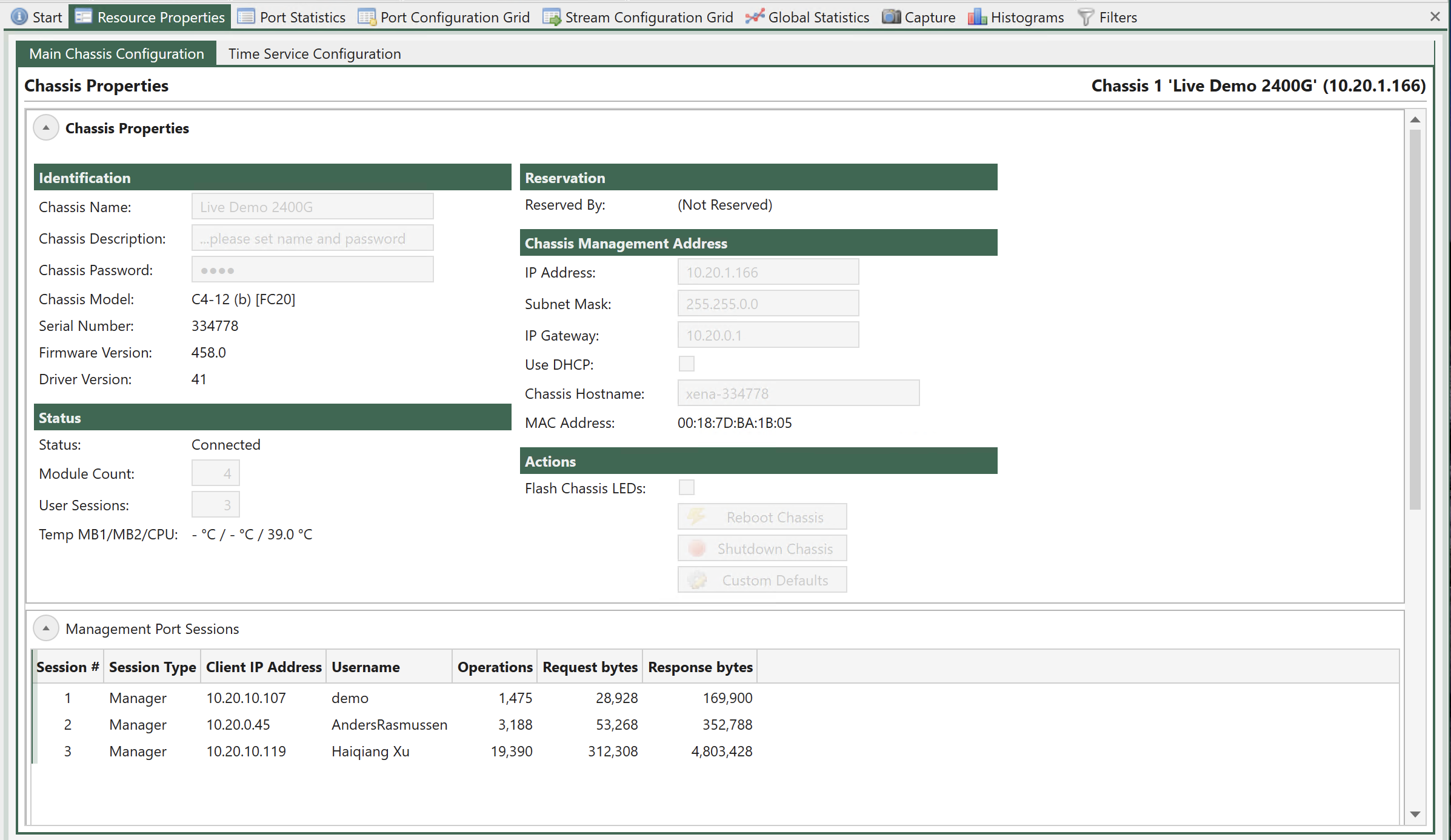

This section describes the available chassis properties for XenaManager.

Configuration and Status#

Identification#

Table 7 Identification#
Property	Explanation
Chassis Name	The name you have administratively assigned to the chassis during installation.
Chassis Description	The description you have administratively assigned to the chassis during installation.
Chassis Password	The password you want users to provide when logging on to the chassis.
Chassis Model	The Xena chassis model identification. This value cannot be changed.
Serial Number	The Xena chassis serial number. This value cannot be changed. You should provide this number if you have to request technical support for your system.
Firmware Version	The version of the currently running chassis firmware. You should provide this number if you have to request technical support for your system.
Version Number	The currently loaded firmware version number. You should provide this number if you have to request technical support for your system.
Driver Version	The version of the currently used PCI bus driver firmware.
Firmware	You can use this button to upload single firmware image files to the chassis. It is however recommended that you use the ChassisUpgrader program to upgrade your chassis as this provides a more automatic and user-friendly upgrade mechanism. This option is only visible when you have enabled the Show SW Upgrade Controls option in the View menu.
Temp MB1/MB2/CPU	Temperature readings for motherboard and CPU.

Status#

Table 8 Status#
Property	Explanation
Status	The connection status of the chassis.
Module Count	The number of detected modules in the chassis
User Sessions	The number of current user sessions (connections)

Reservation#

Table 9 Reservation#
Property	Explanation
Reserved By	If the chassis is currently reserved by someone this field contains the username of the reserver.

Chassis Management Address#

Table 10 Chassis Management Address#
Property	Explanation
IP Address	The static management IP address of the chassis. See this page for details on how to modify the address.
Subnet Mask	The subnet mask for the management port of the chassis.
IP Gateway	The default gateway for the management port of the chassis.
Use DHCP	Checking this option will enable the chassis to obtain an IP address using DHCP. The static IP address control mentioned above will then not be used.
Chassis Hostname	The chassis hostname used when sending DHCP requests to a DHCP server. The default value is “xena-”.
MAC Address	The MAC address of the main management port. You can use this when setting up a static address assignment in your DHCP server. Right-click on the value to copy the value to the clipboard.

Actions#

Table 11 Actions#
Property	Explanation
Flash Chassis LEDs	When enabled this property will cause the chassis LEDs to flash, making it easier to identify it if you have several Xena test chassis installed.
Reboot Chassis	This button will reboot the Xena chassis. You can use this to recover from an error situation or if you have changed the chassis IP address.
Shutdown Chassis	This button will shutdown the chassis. Note that you will have to manually power-cycle the chassis to bring it up again!

Management Port Sessions#

This table shows the currently active user sessions on the chassis. You can, for instance, use this to check if a user that has reserved a resource you want to use is currently active.
