Port Configuration Grid

This section explains how to use the port configuration grid.

The Port Configuration Grid show all ports currently in your testbed. It does not show any other ports, not even if they have been reserved by you.

For a more detailed description of each port property please refer to the Main Port Config.

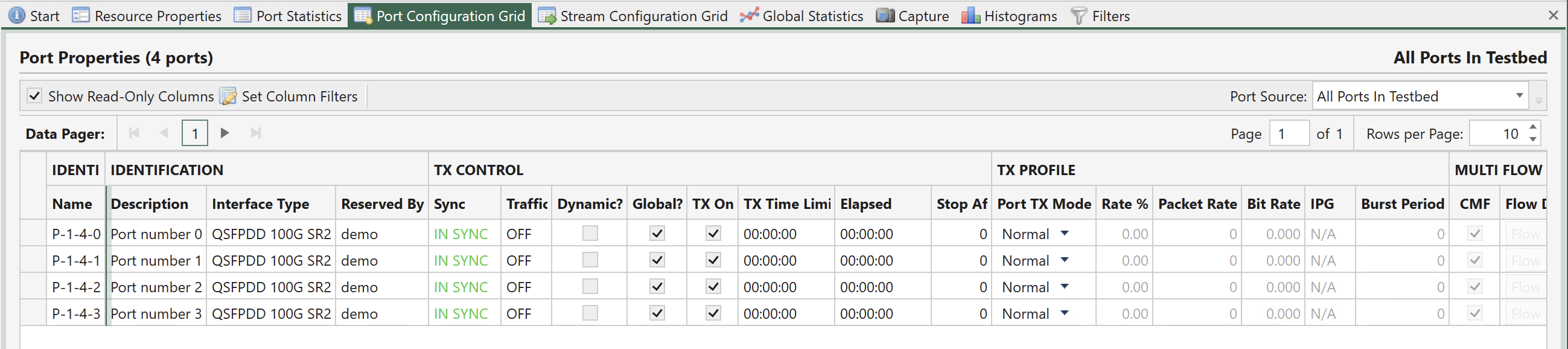

Fig. 118 Port configuration grid

Grid Operations

Column Filtering

Each grid contains a lot of columns which may slow down the loading of the grid and/or may overload your visibility. This section explains how you can limit the number of displayed columns and select which columns you want to be shown.

• Show Read-Only Columns

The toolbar contains a checkbox which toggles the visibility of the read-only columns. This is useful if you only want to show columns that actually allow you to configure something.

• Set Column Filters

If you want more control over the displayed columns you can press the Set Column Filters button in the toolbar. This will allow you to filter the columns either based on their group or individually. The filter selections will be remembered the next time you start up the XenaManager.

Frozen Columns

The first set of columns that uniquely identifies the entity in each row will be frozen which means that they will not scroll out of view even if you scroll the columns all the way to the right.

Right-Click Operations

Each cell in the grid may support one or more of the right-click actions described below.

Use Value for All

If this action is selected the value for this cell will be used for all the other rows.

Use Value for All w.Increment

If this action is selected the value for this cell will be used as a template value for all the other rows, but it will be incremented for each row. The increment will be performed based on the value type. A rate value of e.g. 11.4 will be incremented to 12.4. An IP address of 10.0.0.4 will be incremented to 10.0.0.5.
